HA11 24V Battery Equalizer


HA11 battery equalizer is for balancing 2*12V battery bank. Compatible with lead acid battery, lifepo4 battery, NiMH Battery, etc. It start work when there is 20mv voltage difference between batteries.

  • Model: HA11
  • Battery: 2*12V battery
  • With Bluetooth
  • Size: 70*70*27mm
  • Weight: 0.25KG
  • CE RoHS Certification





Main Features:

  • For 2*12V Batteries
  • With Bluetooth
  • Balance in series conencted battery bank
  • Extend battery lifetime
  • Active Energy Transfer Equalizer
  • Compatible with all batteries, No Battery type limited
  • Low power consumption,High efficiency
  • Small size, easy installation.
  • CE, RoHS certification
  • Customization service


Working Principle



Technical Specification:

Model HA11
Battery Normal Voltage 2*12V
Battery cell voltage range 10V-18V
Balance current 0-5A(based on voltage difference)
Quiescent current <3mA
Balance status keep on working in charging/discharging/free status when there is 20mv voltage difference
Dimensions 68*68*25 mm
Weight 0.25kg
Protection Reverse polarity protection
Low Voltage Disconnect 10V
Certification CE, RoHS
customized Yes, offer OEM ODM service

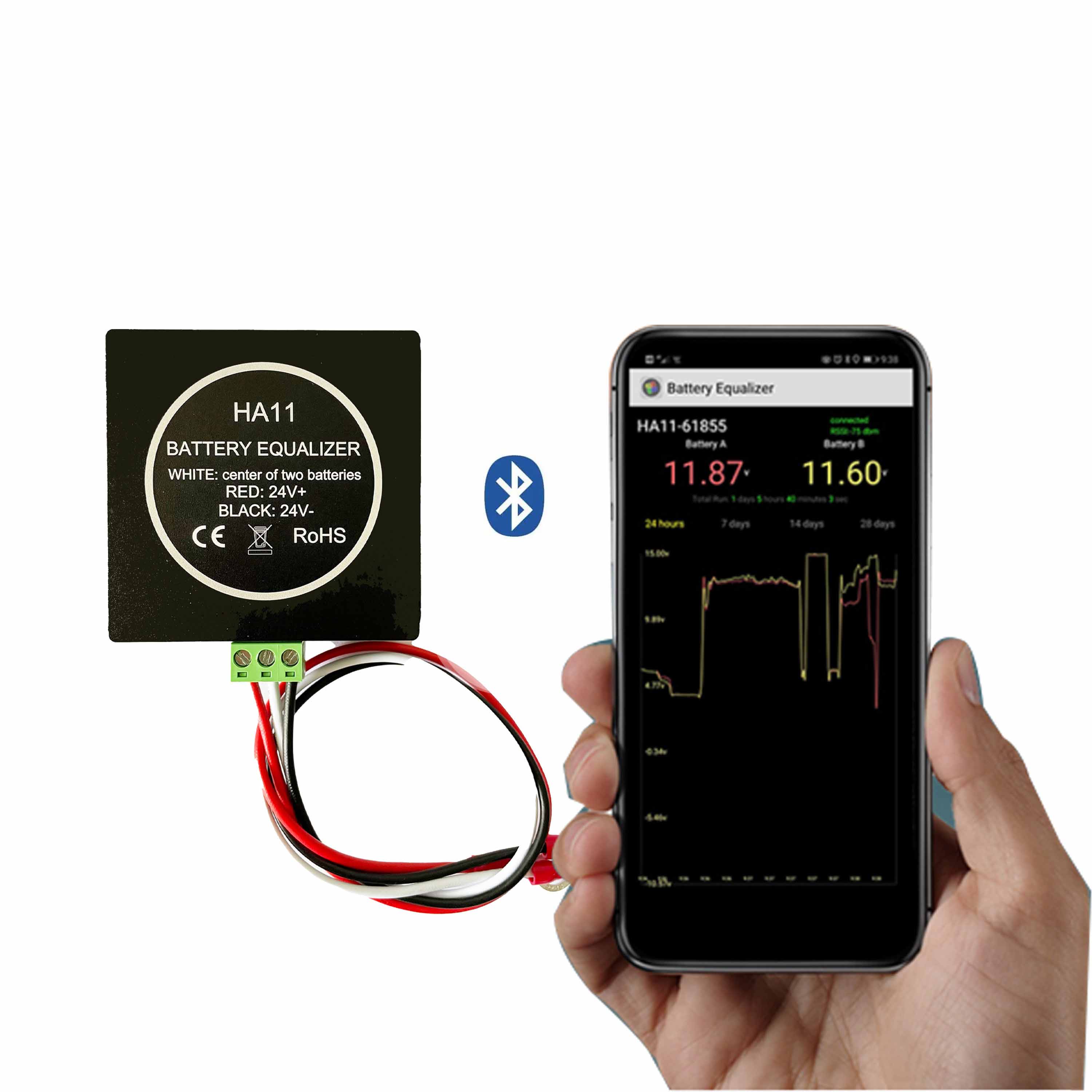

Bluetooth & App:

After the equalizer is conencted with the batteries. turn on bluetooth on Mobile. User can check the batteries' realtime voltage by the App.



Please connect battery equalizer to batteries as the following order (showed in the picture)

  1. Black cable: Battery A negative/- pole
  2. Red cable: Battery B positive/+ pole
  3. White cable: Battery B negative pole or Battery A positive pole.(The pole which connected Battery A and Battery B in series)



  • 1x battery equalizer
  • 1x user manual


Shenzhen Huaxiao Technology Co., Ltd is the professional manufacture of equalizer with 12 years experience. All delivered products have passed the company's stringent professional performance testing, which can meet the needs of the customer market. Please contact us for more detailed information.
